Battery Capacity % guaranteed under warranty:70
Battery Capacity in kWh:87
Battery Charging Scenario 1 - Charge Time (Mins):2822
Battery Charging Scenario 1 - Percentage Change:0-100
Battery Charging Scenario 1 - Power Supply - kW:2.3
Battery Charging Scenario 2 - Charge Time (Mins):834
Battery Charging Scenario 2 - Percentage Change:0-100
Battery Charging Scenario 2 - Power Supply - kW:7.4
Battery Charging Scenario 3 - Charge Time (Mins):275
Battery Charging Scenario 3 - Percentage Change:0-100
Battery Charging Scenario 3 - Power Supply - kW:22
Battery Charging Scenario 4 - Charge Time (Mins):70
Battery Charging Scenario 4 - Percentage Change:0-100
Battery Charging Scenario 4 - Power Supply - kW:150
Battery Leased:No
Battery Type:Lithium-ion
Charging Port Location:Right Side Front
Coupler/Connector Type:Type 2
Maximum Charging Rate - kW:150
Standard manufacturers Battery warranty - Mileage:100000
Standard manufacturers Battery warranty - Years:8
WLTP - EC (kWh/100km) - Comb:19
WLTP - EC (miles/kWh) - Comb:3.3
WLTP - Pure Electric Range (km) - Comb:460
WLTP - Pure Electric Range (miles) - Comb:285
CO:Not Available
CO2:Data Not Available
HC:Not Available
HC+NOx:Not Available
Noise Level dB(A):Not Available
NOx:Not Available
Particles:Not Available
Standard Euro Emissions:Not Available
Automatic Transmission:Yes
Bore:Not Available
Catalytic Convertor:Not Available
CC:1
Compression Ratio:Not Available
Cooling System:Not Available
Cylinder Layout:Not Available
Cylinders:Not Available
Engine Layout:FRONT TRANSVERSE
Engine Make:Not Available
Fuel Delivery:Not Available
Fuel Type:ELECTRIC
Gears:1 SPEED
Manual Transmission:No
Number of Valves:Not Available
Stroke:Not Available
Valve gear:Not Available
EC:Not Available
EC Combined:Not Available
EC Extra Urban:Not Available
EC Urban:Not Available
Alternative Fuel Qualifying:Yes
Alternator Amps:Not Available
Did at least one aspect of this vehicles safety give cause for concern?:No
Badge Engine CC:0.0
Badge Power:140
Based On ID:Not Available
Coin Description:Not Available
Coin Gross Vehicle Weight Code:Not Available
Coin Power Output Code:Not Available
Coin Series:Not Available
Coin Wheelbase Description Code:Not Available
Coin Wheelbase Name Code:Not Available
Generation Mark:4
Ghost model for valuation purposes:No
Manufacturers Corrosion Perforation Guarantee - Years:6
Manufacturers Paintwork Guarantee - Years:3
NCAP Adult Occupant Protection %:Not Available
NCAP Child Occupant Protection %:Not Available
NCAP Overall Rating - Effective February 09:Not Available
NCAP Overall Rating - LCV:Platinum
NCAP Pedestrian Protection %:Not Available
NCAP Safety Assist %:84
Relative Height:H2
Relative Length:L3
Running Cost League Headings:LARGE
Service Interval Frequency - Months:24
Service Interval Mileage:24000
Special Edition:No
Special Order:No
Standard manufacturers warranty - Mileage:100000
Standard manufacturers warranty - Years:3
Vehicle Homologation Class:N1
Vin/Frame No.:Not Available
BHP:140
Engine Power KW:104
Engine Torque LBS.FT:221
Engine Torque MKG:30.6
Engine Torque NM:300
Top Speed:120
Emissions Test Cycle:WLTP
RDE Certification Level:Not Available
Alloys?:No
Automatic Clutch:No
Plated 3rd Axle:Not Available
Plated 4th Axle:Not Available
Space Saver?:No
Tyre Make:Not Available
Tyre Size Front:205/75 R16
Tyre Size Rear:205/75 R16
Tyre Size Spare:TYRE REPAIR KIT
Wheel Style:Not Available
Wheel Type:16" STEEL
Front Overhang:965
Height:2502
Length:6315
Load Deck Height:570
Load Height:1885
Load Length:3855
Load Space Width Between Wheel Arches:1380
Lower Rear Door Width:1537
Rear Door Height:1755
Rear Overhang:1131
Side Load Door Height:1753
Side Load Door Width:1312
Turning Circle - Kerb to Kerb:14.6
Turning Circle - Wall to Wall:14.6
Wheelbase:4213
Width (excluding mirrors):2080
Width (including mirrors):2466
Boot Capacity Saloons:Not Available
Fuel Tank Capacity (Litres):Not Available
Gross Train Weight:5000
Gross Vehicle Weight:3500
Load Space Volume:13
Luggage Capacity (Seats Down):Not Available
Luggage Capacity (Seats Up):Not Available
Luggage Capacity - 2nd Row Seats Removed:Not Available
Luggage Capacity - 2nd Row Seats Up:Not Available
Luggage Capacity - 3rd Row Seats Down:Not Available
Luggage Capacity - 3rd Row Seats Removed:Not Available
Luggage Capacity - 3rd Row Seats Up:Not Available
Max. Roof Load:200
Minimum Kerbweight:1953
No. of Seats:3
Payload:1547
Plated 2nd Axle:2100
Plated Front Axle:2070

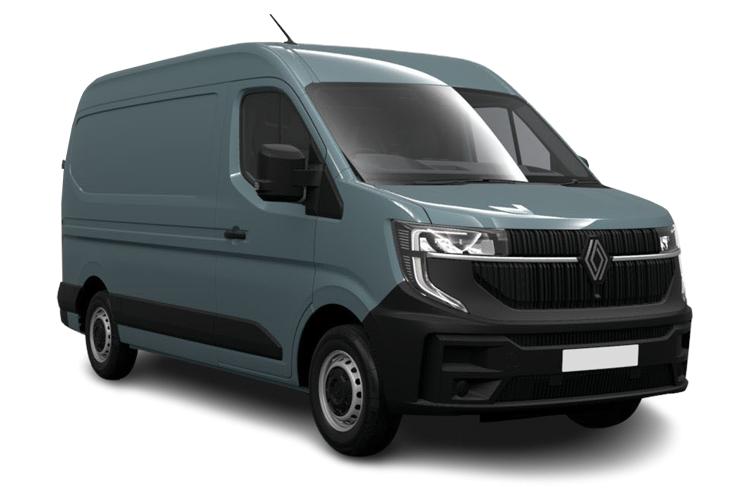

Renault's Master still makes sense as a tough large van in diesel and EV forms. Jonathan Crouch reports.
The Renault Master has been a mainstay of the large van sector for some time now, along with its sibling, the Nissan Interstar. With a vast choice of body styles, engines and options, the Master features economical and refined diesel powerplants, with load volumes from 8 to 22 cubic metres. And there's an E-Tech EV option too.
Renault's Master van is one of those commercial vehicles that seems to do just enough to warrant its own existence in the UK, rarely being the first vehicle buyers consider in a large van segment dominated by models like the Mercedes Sprinter, the Volkswagen Crafter or the Ford Transit. In Europe it's a different matter, the Master racking up some impressive sales. Spawned from the same basis as the Nissan Interstar, the Master has been around in one guise or another since 1980, with that first generation model lasting for 17 years. Its 1997 replacement stuck around for a mere 13 years and the third generation Master appeared in 2010 and has in more recent times been revised to keep things current. Plus there's been a EV E-Tech version since 2018. Is it time we gave the Master the respect it would appear to deserve?
Renault now offers a choice of three dCi diesel engines. They're all based on the same 2.3-litre block and outputs range from 135PS to 145PS and 150PS. Even the 135PS unit generates a respectable slug of torque, with 360Nm available at just 1,250rpm. The 150PS powerplant is good for 62mph in 12.1s. A dual mass flywheel and a crankshaft with eight counterweights also help to reduce engine noise and cut the amount of vibration coming into the cabin. The Master is available in both front and rear-wheel drive layouts. If you're ready to switch away from combustion power, the Master is also available in all-electric E-Tech form, in which guise it uses a 52kWh battery with a 126 mile range. This variant uses an electric motor with just 76hp; you can imagine the result of that fully-loaded up on a steep hill. Particularly if you select the available 'Eco' mode you'll need to get anywhere close to the claimed 126 mile combined cycle driving range, a setting which limits throttle usage and restricts your maximum speed to 62mph. That EV range rises to 160 miles in city traffic. The E-Tech EV model's auto gearbox has just Drive, Neutral or Reverse settings - no Park. And at low speeds, the acoustic pedestrian warning sound EVs have to have is particularly evident in the cab. High speeds are certainly not silent; obviously, it's quieter than the equivalent diesel, though not by as much as you might expect. Renault is good at brake recuperation systems; this particular set-up can't be driver-customised, but it slows the vehicle noticeably when you come off-throttle, though won't bring you right to a standstill. Even so, you'll rarely have to do much braking.
The tough sensible styling of the Master remains as it always has, with the choice of three body lengths and two roof heights in the panel van range. The cabin of the Master has been designed to be as car-like in its seating position as possible while incorporating a number of 'office on wheels' features. Renault has given a lot of thought to the depth of the footwells relative to the hip point of the seating and the degree of seat rake available, so as to offer a comfortable driving angle. A suspension-style driver's seat is standard or optional. The design of the windscreen and side windows, plus the high-up seating position ensure commanding vertical and horizontal fields of vision of 39.9 and 193.1 degrees respectively. A shelf is integrated into the dashboard to house a laptop computer, plus there's a mobile phone holder with a nearby 12V power supply for charging, a 7.6-litre glove box, a full-width overhead rack and a retractable clipboard built into the dashboard to hold documents like delivery slips. Plus you can have a swivelling table incorporated in the middle seat back. With the middle seat back tipped forward, it can serve as a desk, complete with a swivelling table designed to hold a laptop computer.
Prices start at around £31,000 excluding VAT, which is in line with its sibling vehicle the Nissan Interstar. And there are two combustion trim variants - 'Start' and 'Advance'. Of course, there's an absolutely dizzying array of Master variants, with carrying capacities extending from 8 to 22 cubic metres. As well as the panel vans we examine here, there are people carriers, buses, chassis cabs and twin-cab chassis, platform cabs, crew vans and tippers. The Master is offered in four lengths, three wheelbases and with two different rear overhangs. Front and rear-wheel drive is available, with the rear-wheel drive chassis sold with single or twin rear wheels. Then there are four gross vehicle weights: 2.8 tonnes, 3.3 tonnes, 3.5 tonnes (with single or twin rear wheels) and 4.5 tonnes (with twin rear wheels). If you're interested in the E-Tech EV version, prices start from around £54,000 ex VAT after deduction of the available government grant. There is only one E-Tech trim variant - 'Advance'. But a choice of L2H2 and L3H2 body shapes. Standard equipment provision looks good across the range, with a DAB stereo, Bluetooth hands free telephony, a CD player plus USB and iPod connectivity. There's also an optional system incorporating the Carminat TomTom navigation system with an overhead screen. There are also a number of driver aids that improve safety, such as the Grip Xtend function that optimises grip on soft surfaces, hill start assist, stability control with load adaptive control and simpler things such as a wide view mirror built into the passenger sun visor that eliminates the traditional blind spot.
Reducing fuel consumption has been a key driver in the development of this current Master and the diesel engines all are tuned in this regard. Combined fuel consumption is typically in the 31-32mpg range, so the Master is still one of the more economical large LCVs around. Most Master customers choose between the mid L2 and long L3 body lengths and the standard H2 roof height. That's the combination necessary with the E-Tech version. the diesels also offer a higher roof height option. Sticking with the L2H2 or L3H2 models, that means 3,083mm of load bay length in the L2 or 3,733mm in the L3. And 1,894mm of load bay height in either case. There's 1,765mm of load area width, narrowing to 1,380mm between the wheel arches. The sliding side door is 1,270mm wide and 1,780mm high. Load capacities are 10.8m3 in the L2H2 or 13.0m3 in the L3H2. Gross payload with the E-Tech model is obviously down on that of an equivalent diesel - to 1,279kgs. With the E-Tech all-electric version, a 20-80 per cent battery charge can be achieved in 90 minutes using a 22kW DC charge point. 30 miles of charge can be added in 120 minutes via a 11kW charging station. Regardless of powertrain, this Renault is as practical as you'd expect from a vehicle this big. Access to the Master's load area is via the side-hinged rear doors or a sliding side door on the left side of the vehicle. An additional sliding side door on the opposite flank can be specified. The loading height is usefully low at 546mm and even the rear wheel-drive models only increase that to around 700mm. The standard warranty is 3 years and 100,000 miles or 2 years with unlimited mileage.
The Renault Master is one of those vans that has improved at such a steady rate that it's quietly turned from an also-ran into a real contender. No, the interior doesn't feel quite as plush as a Crafter or a Sprinter, but you won't worry too much about that when you drive the Master and realise that it's more comfortable than both of them, so you'll emerge fresher after a long day at the wheel. There's also a vast amount of different configuration options to choose from. The one thing that comes shining through like a beacon when giving this vehicle the once-over is that Renault has clearly engaged deeply with not just the people who buy vans, but the people who use them on a day to day basis. That can only spell good things.
LM35 104kW 87kWh Advance Medium Roof Van Auto
